● Heavy load type, strong power.
● Electric control transmission, easy to operate, improving work efficiency.

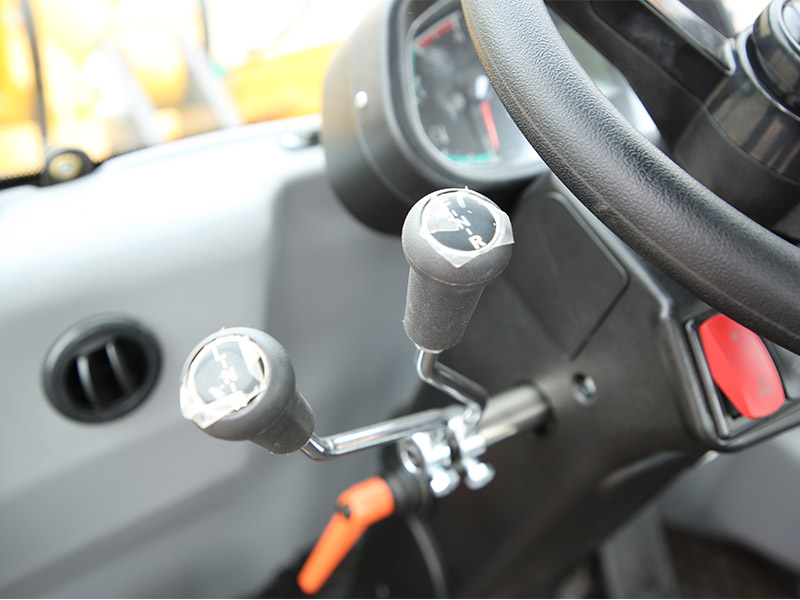

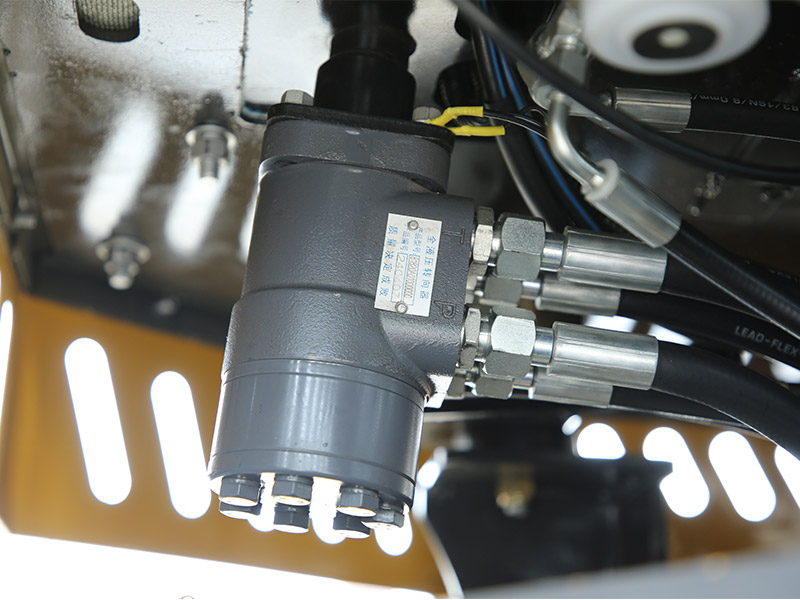

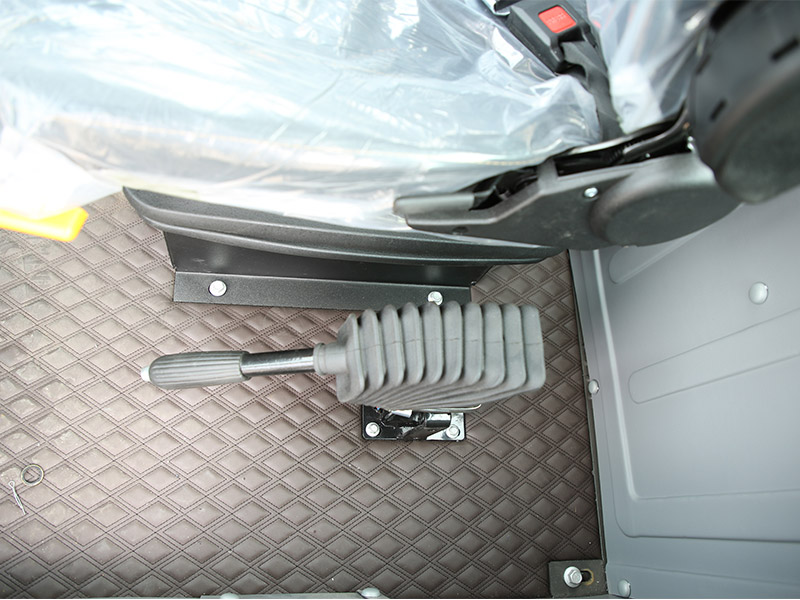

● Pilot control, full hydraulic steering system, electronic shift, easy to operate

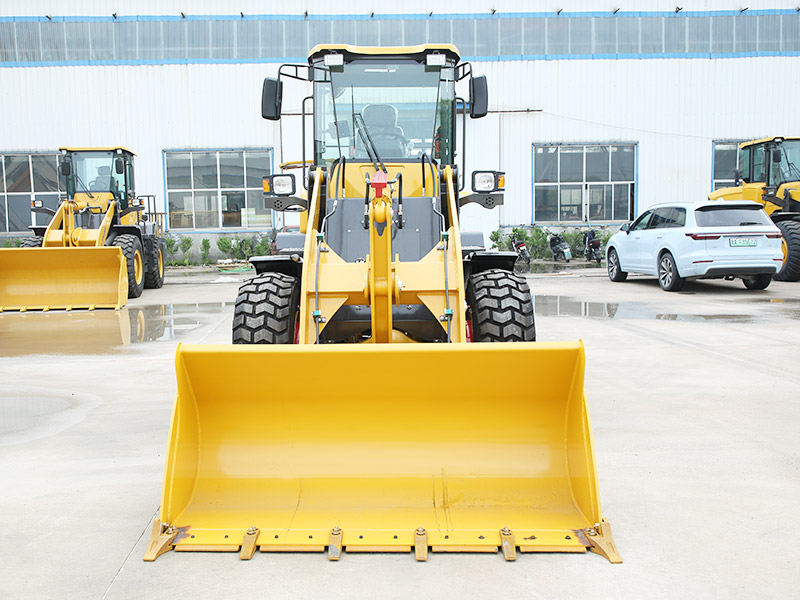

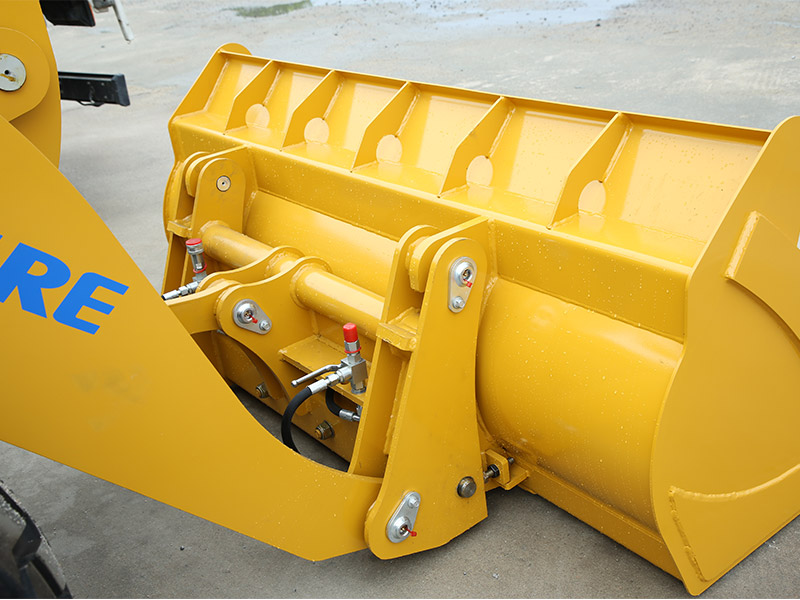

● Automatic leveling bucket, optimizing works, improving work efficiency
● New sealed driver's cabin, more comfortable environment for operation
● Various optional accessories like log fork, pipe fork, grass fork, rock bucket, snow panel, hold fork available, meeting various working conditions.
| Rated capacity | 0.8m3 |
| Rated weight | 1.8kg |
| Operating weight | 4800kg |
| Max.breakout force | 50KN |
| Max.grade ability | 30° |
| Total of three time:lifting dumping lowering | 8S |
| Max. dump height | 2950mm |
| Max.dump reach | 900mm |
| Min. ground clearance | 340mm |
| Wheel base | 2320mm |
| Tread | 1212mm |
| Overall dimensions (length*width*height) | 5900*1900*2780mm |

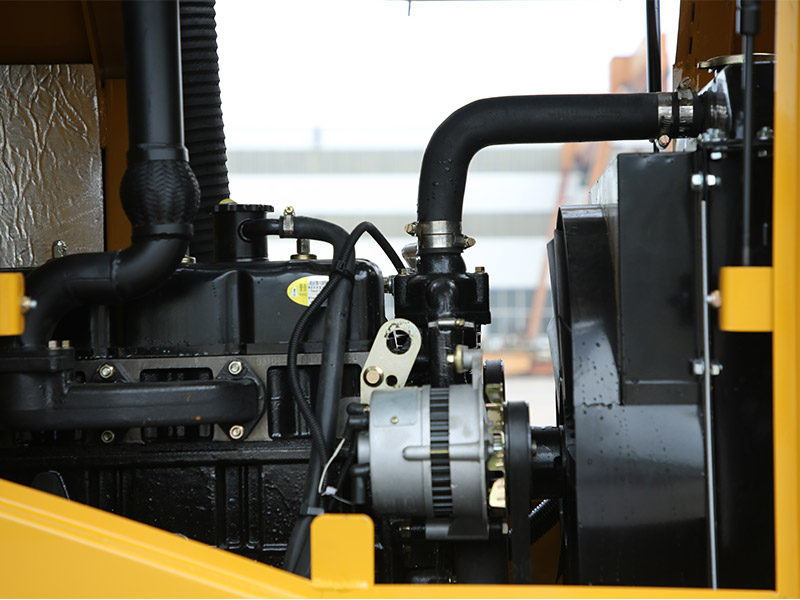

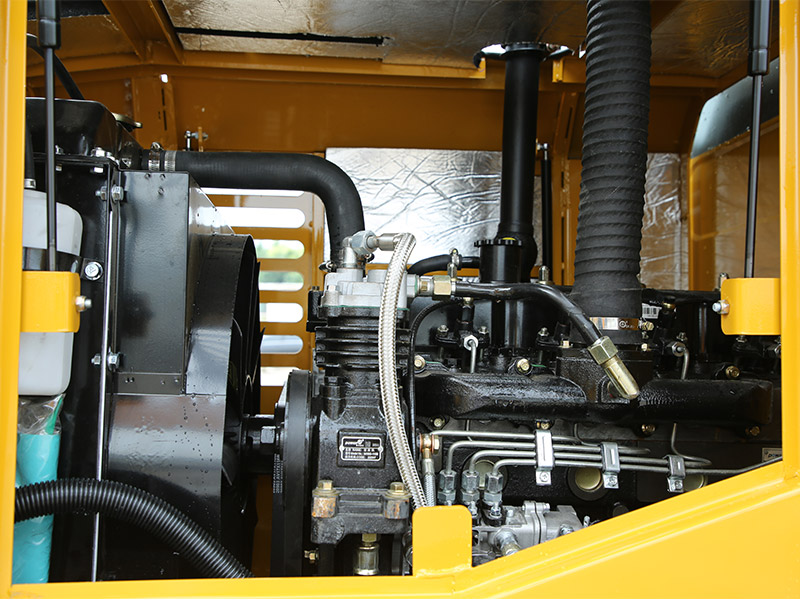

| Engine | |
| Model | 2HBG41 |
| Pattern | inline,water cooled,dir.inject,fourstrokees |
| Rated power | 65KW |
| Specified rotational speed | 2400r/min |
| Drive Axle | |
| Drive Axle | 中輪邊 |
| Main reducertyre | arc taper gear moderation of frst grade |
| Pattern of wheelside moderation | planet gear moderation of single |
| Steering system | |
| Steeringangle(each direction) | 35° |
| Min,turningradius(outside ofbucket) | 4000mm |
| Hydraulic system | |
| Implement pump | FC18 |
| Displacement | 105ml/r |
| System working pressure | 16MPa |
| Distribution device model | ZL15.3 |
| Transmission | |
| Model of torque device | 265 |
| Pattern | 4-element single stage two phase |
| Pattern of gearboxes | |
| Number of great shift | 2 gears ahead,2 gear astern |
| Max.travel speed | 30km/h |
| Brake system | |

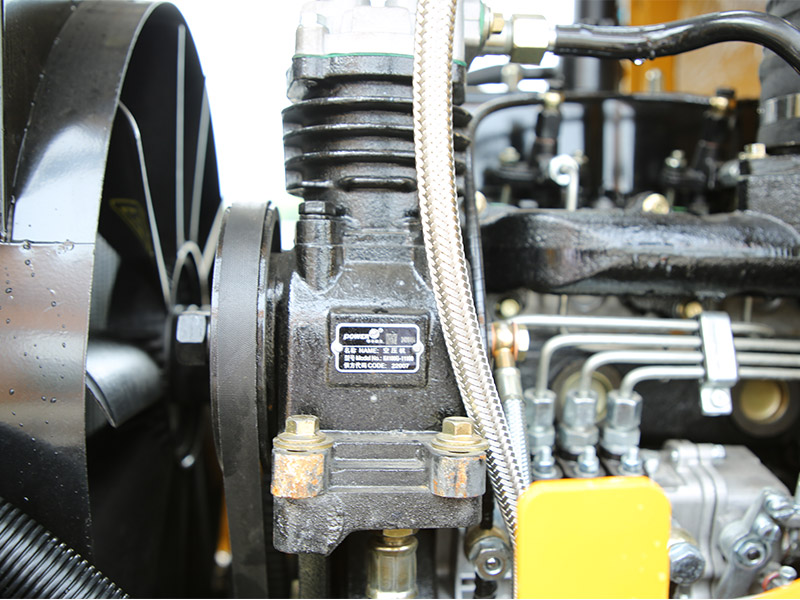

| Service brake | Air -break |
| Parkingbrake | Hand brake |
| Tyre | |
| Tyre size | 16/17-20 |
