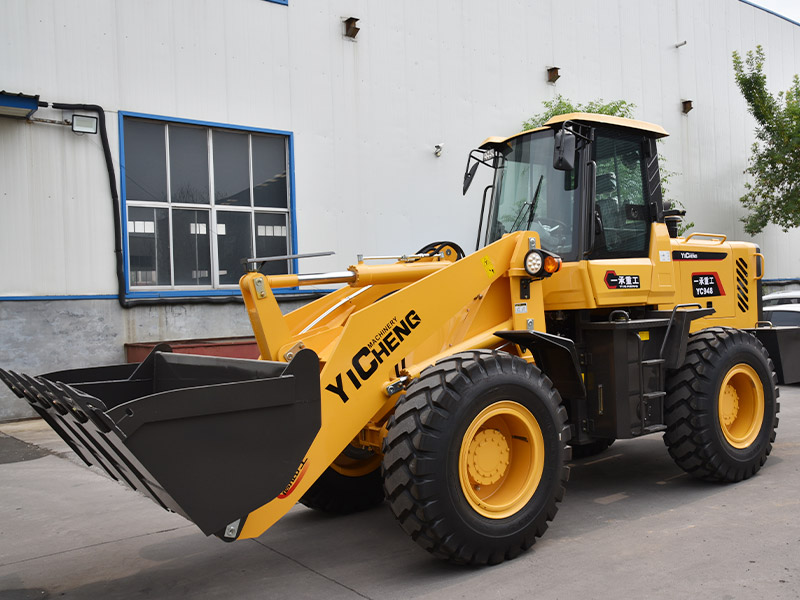

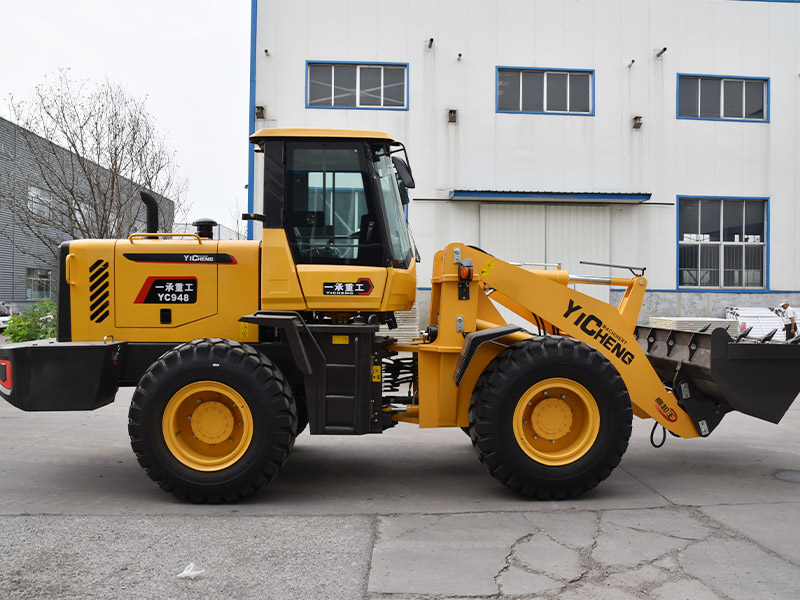

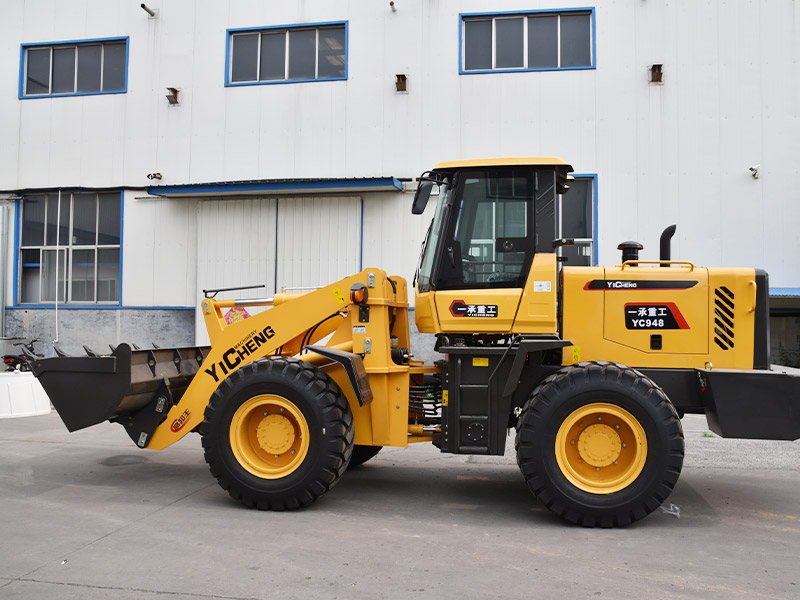

| YC948型裝載機 |
| performance性能 |
|
| Rated load capacity額定載重量 | 2800kg |
| Overall weight整機重量 | 7600kg |

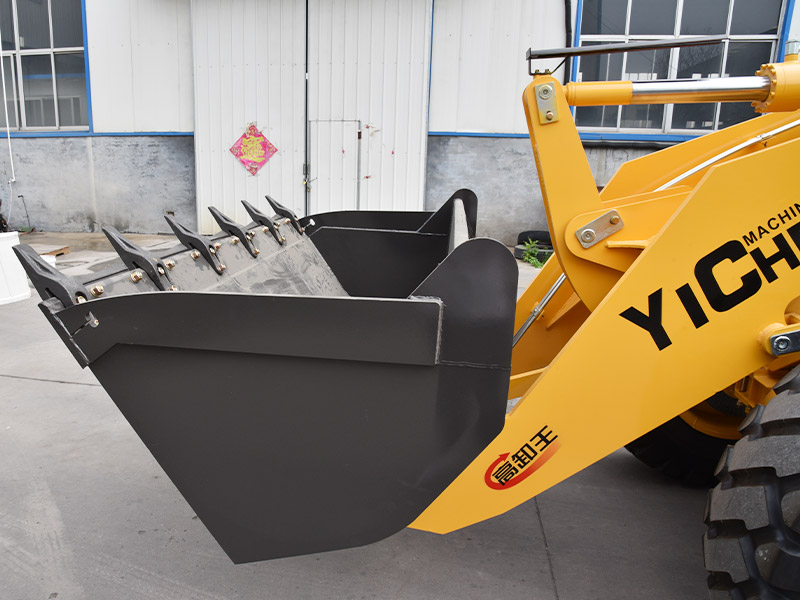

| Rated bucket capacity額定斗容量 | 1.5m3 |
| zui大舉升高度 | 5050mm |
| Maximum unloading height zui大卸載高度 | 3700mm |
| Maximum unloading distanc zui大卸載距離 | 1050mm |
| Overall dimensions of the machine整機外形尺寸（L×W×H） | 7000×2300×3060mm |
| Bucket width斗寬內徑 | 2300mm |
| engine發動機 |
|
| model型號 | WP6G125E332 |
| Number of cylinders氣缸數 | Six cylinder 六缸 |
| Rated power額定功率 | 92KW |
| drive system傳動系統 |
|
| Torque converter type變矩器型式 | Infinitely variable speed 無極變速 |
| Transmission model變速箱型號 | 315 |
| Number of gears檔位數 | F4R4 前4后4 |
| Maximum speed zui高車速 | 36Km |
| Drive axle驅動橋 |
|
| Main reduction type主減型式 |
|
| Final reducer輪邊減速型式 | 28 wheel reduction axle 28輪邊減速橋 |
| Wheelbase軸距 | 2770mm |
| Track width輪距 | 1690mm |

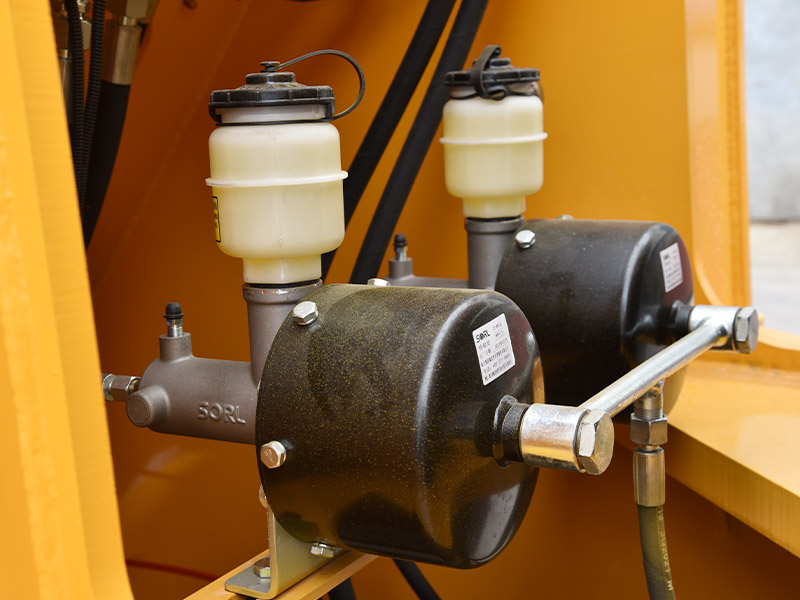

| braking system制動系統 |
|
| service brake行車制動 | Disc brake 盤式制動 |
| Parking brake駐車制動 | Soft axle braking 軟軸制動 |

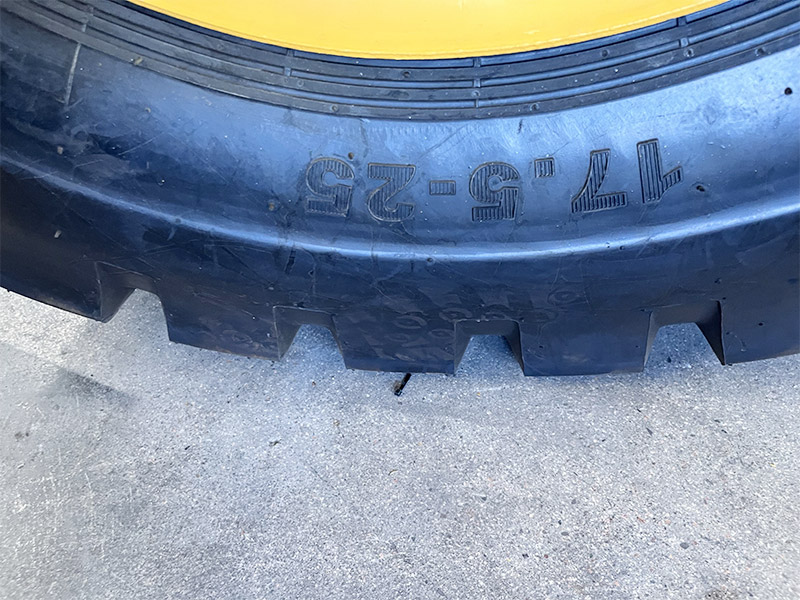

| tyre輪胎 |
|
| specifications規格 | 17.5-25 |
