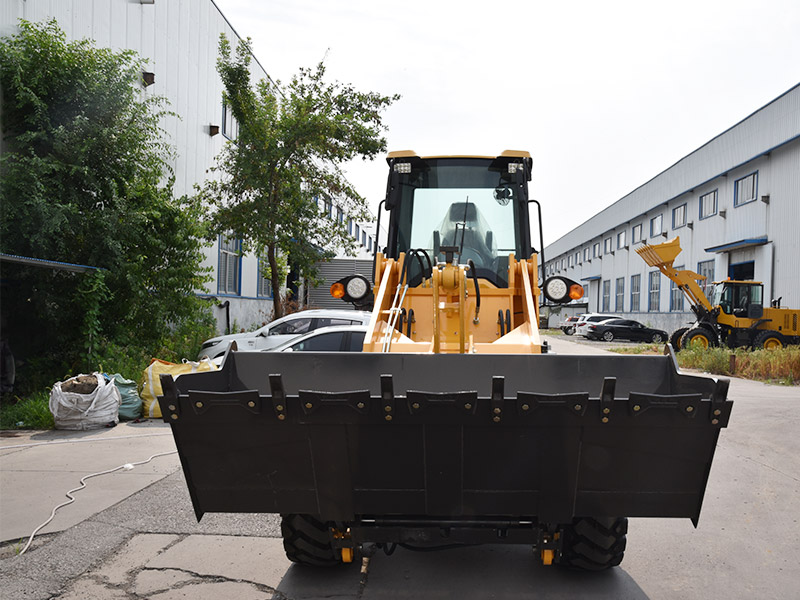

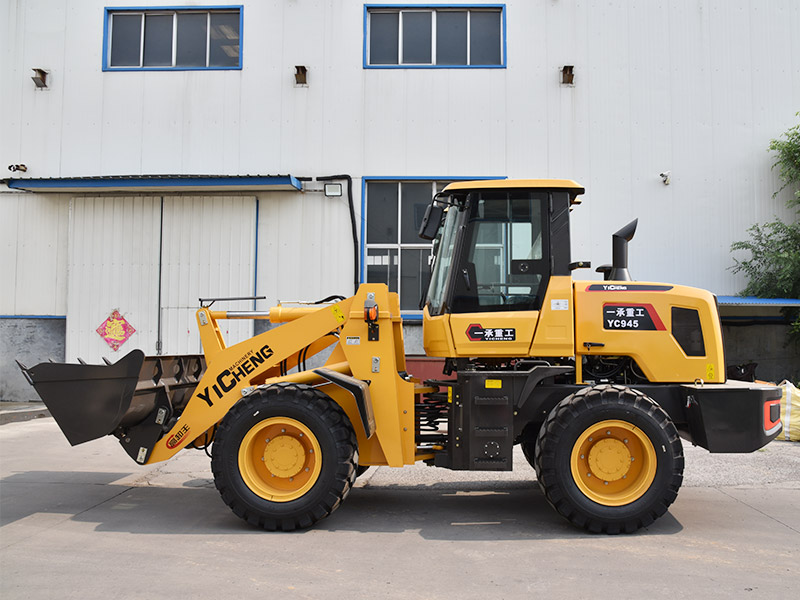

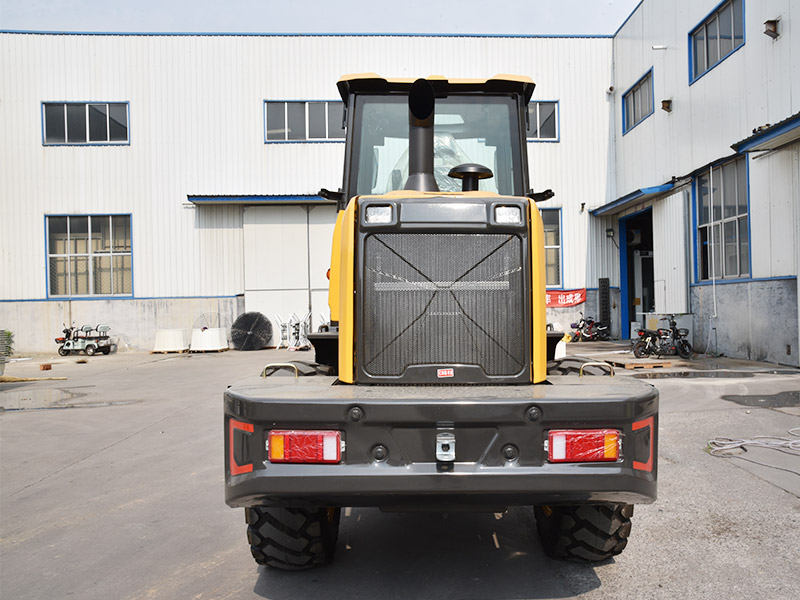

| YC945型裝載機 | |
| performance性能 | |
| Rated load capacity額定載重量 | 2500kg |
| Overall weight整機重量 | 5900kg |

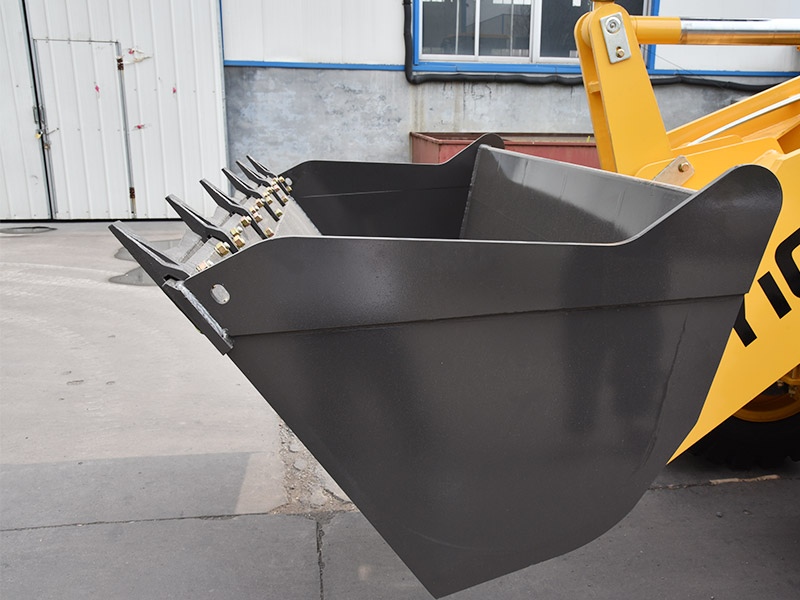

| Rated bucket capacity額定斗容量 | 1.3m3 |
| Maximum unloading height zui大卸載高度 | 3600mm |
| Maximum unloading distanc zui大卸載距離 | 1000mm |
| Overall dimensions of the machine整機外形尺寸（L×W×H） | 6400*2300*2950 |
| Bucket width inner diameter斗寬內徑 | 2200mm |

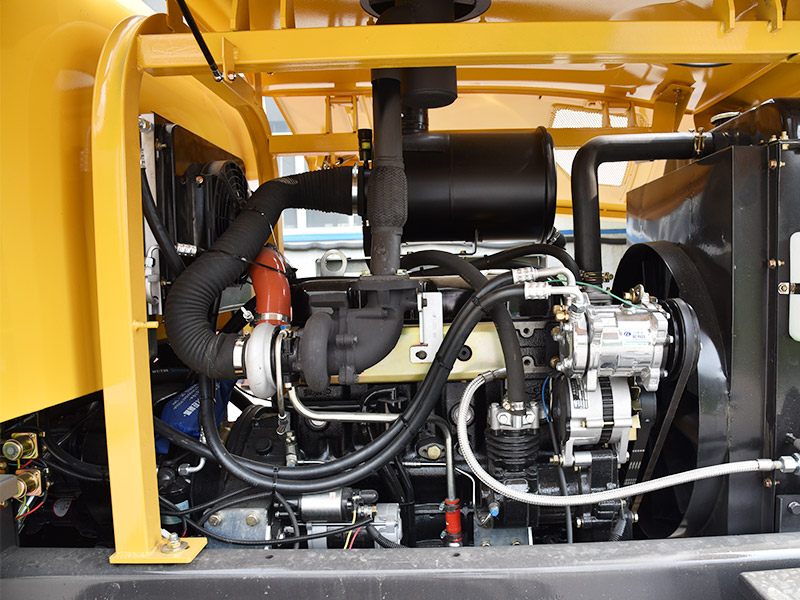

| engine發動機 | |
| model型號 | YCD4J22T-115 |
| type型式 | Inline water-cooled four stroke直列 水冷 四沖程 增壓 |
| Number of cylinders, diameter and stroke氣缸數 缸徑 行程 | 4 105*125 |
| Rated power speed額定功率 轉速 | 85KW 2400 |
| Maximum torque zui大扭矩 | 410 |
| Minimum fuel consumption rate zui低燃油消耗率 | ≤225 |
| displacement排量 | 4.3 |
| drive system傳動系統 | |
| Torque converter type變矩器型式 | Infinitely variable speed無極變速 |
| Transmission model變速箱型號 | 280 |
| Number of gears檔位數 | F4R4 前4后4 |
| Maximum speed zui高車速 | 36Km |
| Drive axle驅動橋 | |
| Main reduction type主減型式 | |
| Final reducer輪邊減速型式 | Large wheel reduction bridge大輪邊減速橋 |
| Wheelbase軸距 | 2670mm |
| Track width輪距 | 1650mm |

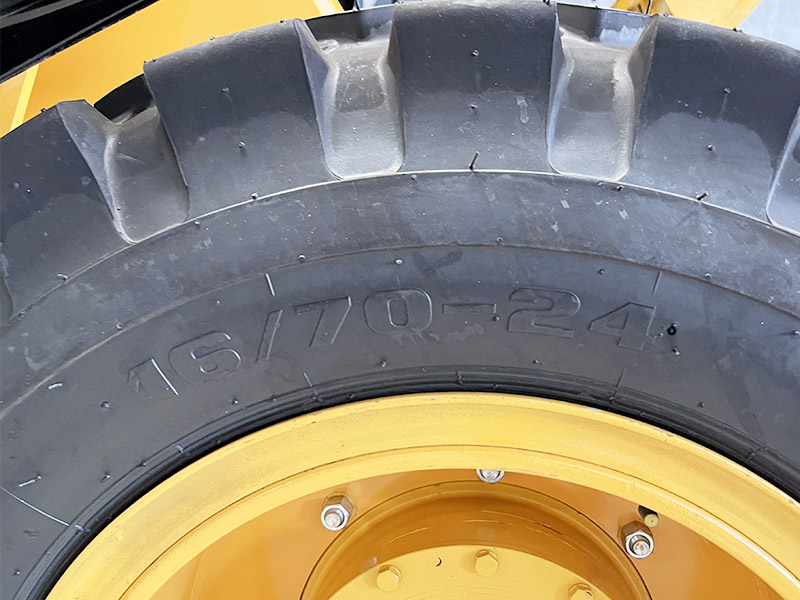

| tyre輪胎 | |
| specifications規格 | 16/70--24 |
