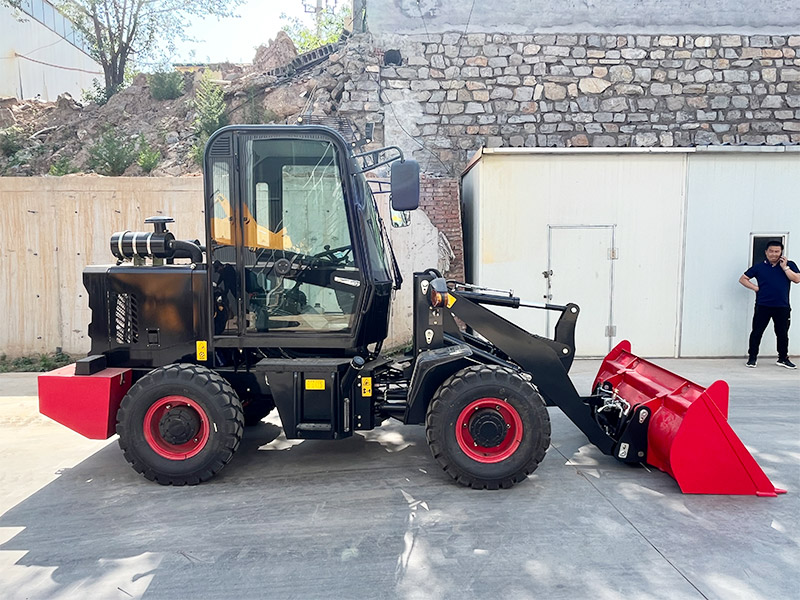

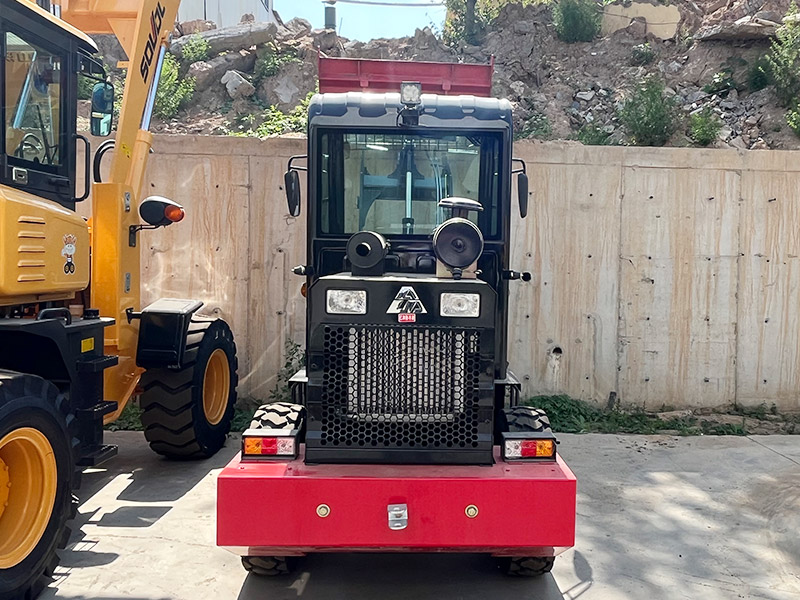

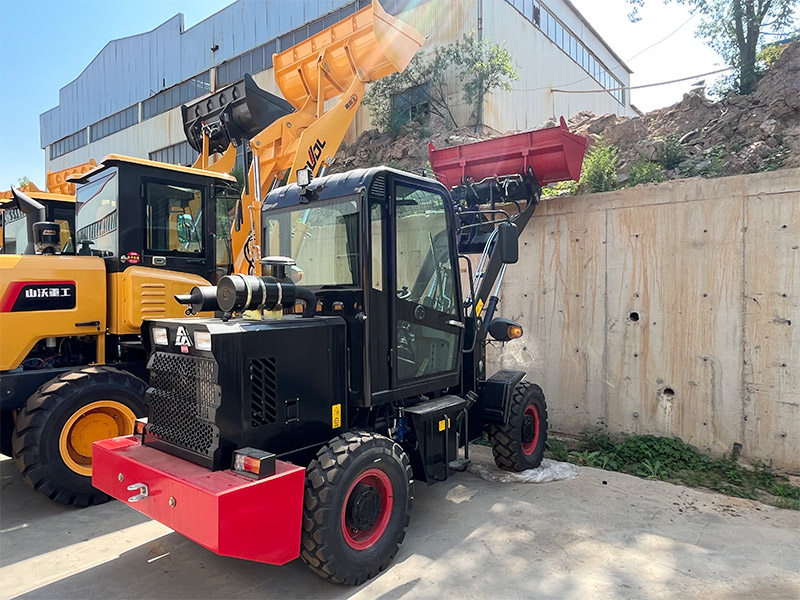

| YC916 | |
| 額定載重量 Rated load capacity | 800kg |
| 整機重量 Overall weight | 2400kg |
| 鏟斗容量 Rated bucket capacity | 0.5m3 |
| 卸載高度 Maximum unloading height | 2400mm |
| 卸載距離 Maximum unloading distance | 800mm |
| 整機尺寸 Overall dimensions of the machine (L × W × H) | 4700×1520×2200mm |

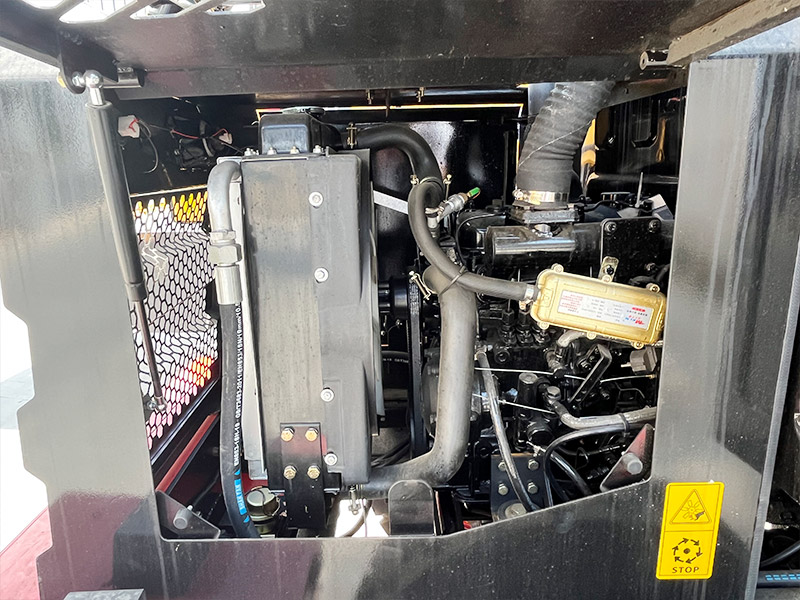

| 發動機 Engine | |
| 型號 model | YN25 |
| 類型 type | 直列水冷/四沖程/自然進氣 Inline water-cooled four stroke naturally aspirated |
| 額定功率 Rated power speed | 37KW 2400 |
| zui大扭矩 Maximum torque | 170 |
| 驅動系統 drive system | |
| 變矩器類型 Torque converter type | Infinitely variable speed |
| 變速箱 Transmission model | 265 |
| 檔數 Number of gears | Front 2 Rear 2 |
| zui高速度 Maximum speed | 18Km |
| 軸距 Wheelbase | 2000mm |
| 輪距 Track width | 1240mm |

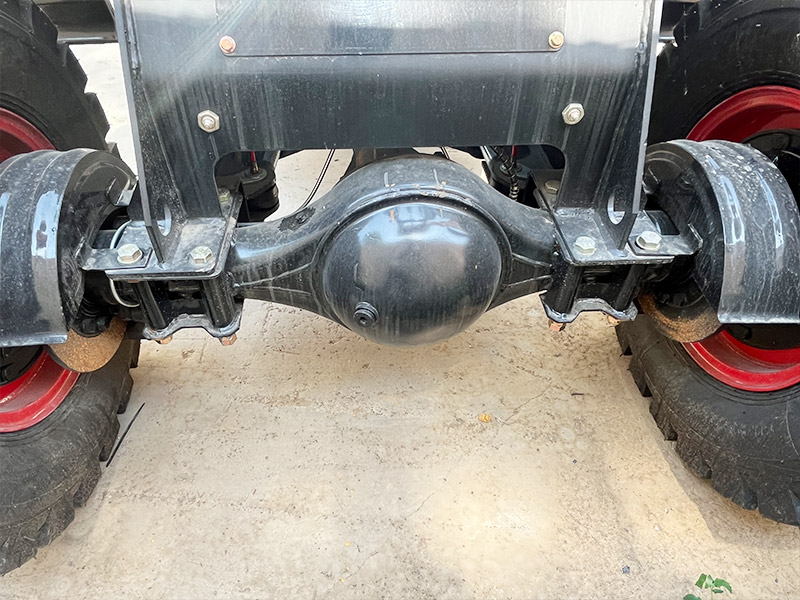

| 驅動橋 Drive axle | |
| 主減速器 Final reducer | 輪邊減速 Wheel side bridge |
| 輪胎 tyre | |
| 型號 specifications | 12.5-16 |
